Rain Gardens


Monash Council has built rain gardens, gross pollutant traps, infiltration trenches and bioswales throughout the municipality to collect and clean rainwater from urban catchments before it flows into streams and the surrounding environment.

Rain gardens use a process called bio-filtration, where plants and soil filter out pollutants such as nitrogen, phosphorus, oils and heavy metals from rainwater and storm water. This improves the water quality entering our local creeks and the bay. It also reduces the volumes of storm water runoff, reducing erosion in our waterways.

Gross pollutant traps are structures that use physical processes to trap solid waste. They mostly remove non-biodegradable large pollutants.

Infiltration trenches are an excavation filled with porous material, allowing for run-off collection. They dissolve pollutants and provide water to plants, where vegetated, during dry periods.

Swales are linear depression channels that provide stormwater collection and conveyance. They can be grass-lined or more densely vegetated and landscaped.

Rain Gardens in Monash

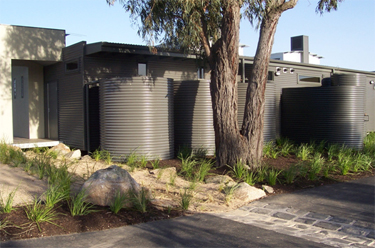

Glen Waverley North Reserve Pavilion

Glen Waverley North Reserve Rain Garden

Rain runs off the pavilion roof into rainwater tanks, and a series of swales run around the building to take any overflow of water. Water then crosses a bluestone ford in the road and ends up in the small retarding basin and stormwater system.

For other information about the reserve's facilities, please see: Glen Waverley North Reserve.


Glen Waverley North Reserve

5-11 Madeline Street, Glen Waverley 3150

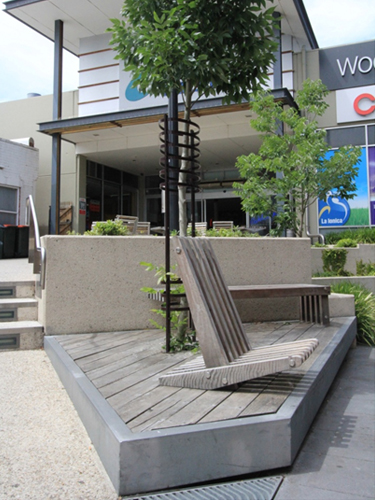

Eaton Mall

Eaton Mall

Eaton Mall uses a combination of two passive tree-pits under decks, three retaining wall planters, and one rain garden.


Eaton Mall

Eaton & Chester streets, Oakleigh 3166

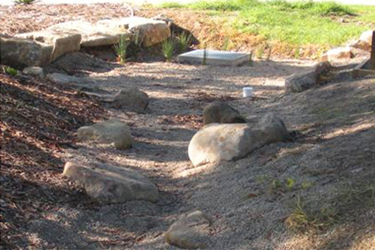

Electra Reserve

Electra Reserve rain garden

Rain runs off the roof of the community centre into tanks and then overflow runs into a swale. The lower car park runoff is collected in a series of swales and bio-retention channels. The upper car park runoff is directed into rain gardens and falls down the mount, directed along the swale and eventually enters the drainage system.

For more information about the reserve's facilities, please see Electra Reserve.


Electra Reserve

21A Electra Avenue, Ashwood 3147

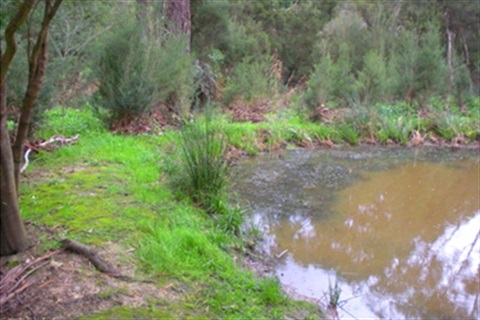

Napier Park Frog Bog

Napier Park Frog Bog

A frog bog has been constructed at Napier Park. Water runs off surrounding grassed areas and the car park, travels along a swale, and collects in the pond before entering the creek.

For more information about the park's facilities, please see Napier Park.


Napier Park

16 Torwood Avenue, Glen Waverley 3150

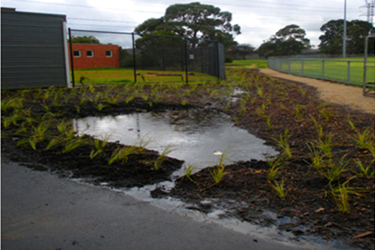

Wellington Reserve Community Centre

Wellington Reserve rain garden

Rain runs off the centre's roof into tanks, and then overflows into swales before finding its way into the drainage system.

For more information about the reserve's facilities, please see Wellington Reserve.


Wellington Reserve

36-42 Mackie Road, Mulgrave 3170


Holmesglen Valley Bio-Filter Wetland

Design and construction of the bio-filter is a joint project between Monash City Council and Melbourne Water to establish a native landscaped seasonal wetland and rain garden in Holmesglen Reserve, as part of the Living Rivers and Offset Programs.

The wetland is planted with a dense cover of wetland plants and covers an area 3,000 square metres, with a further 1,500 square metres planted with dryland plants.

The wetland retains stormwater and bio-filters it before it enters Gardiners Creek. It also provides habitat for native birds and other wildlife and improves amenity for the Holmesglen area.

For more information about the reserve's facilities, please see Holmesglen Reserve.


Holmesglen Reserve

Warrigal Road & Power Avenue, Ashwood 3147

Marianne Way Rain Gardens

The Marianne Way Retail Strip was beautified with the construction of a series of rain garden trees ending in a rain garden bed.

In June 2009, Council received a Keeping Australia Beautiful Award in the Water Conservation Award category for this project.


Marianne Way, Mount Waverley 3149

Atherton Road Streetscape Enhancement

A series of rain garden tree pits were constructed along Atherton Road to beautify the streetscape, and to improve quality and reduce volumes of water draining into the stormwater system.

The tree tips (grates) are specially designed to allow water to drain from the footpaths into the tree root-bed.


10-29 Atherton Road, Oakleigh 3166
